Air Hoist
동산엔지니어링  동산엔지니어링  >  취급품목  >  Air Hoist

Air Hoist

Air Hoist
  • SAN-EI ( JAPAN )
  • N.P.K ( JAPAN )
  • 극동
KLX-VLX SERIES
Capacity
(kg)
 Air Pressure
(kgf/cm³)
 Lift Speed
(m/min)
 Air Consumption
(N-㎡/min)
 Lift
(M)
 Pendant Plain
Trolley
 Geared
Trolley
 Air Motor
Trolley
 Model Weight(kg)
250 0.6
0.5
0.4		 17
15
13		 1.6
1.3
1.0		 3 ● KLX·VLX 25LP 23
● ● KLX·VLX 25LP-PR 40
● ● KLX-VLX25LP-GR 47
● ● KLX-VLX25LP-MR 47
490/
500		 0.6
0.5
0.4		 12
10
7		 1.6
1.3
1.0		 3 ● KLX·VLX 50LP 23
● ● KLX·VLX 50LP-PR 40
● ● KLX-VLX50LP-GR 47
● ● KLX-VLX50LP-MR 47
1000 0.6
0.5
0.4		 6
5
3.5		 1.6
1.3
1.0		 3 ● VLX 100LP 33
● ● VLX 100LP-PR 49
● ● VLX100LP-GR 56
● ● VLX100LP-MR 57

VMX SERIES
Capacity
kg
 Air
pressure
(kgf/cm³) 		Lift
speed
(m/min)		 Air
Consumption
(N-m³/min)		 Lift
(m)
 pull
cord
 pendant
 plain
Trolley
 Geared
Trolley		 Air
Motor
Trolley		 Model Weight
(kg)
1000 0.6

0.5

0.4		 5.0

4.0

3.0		 1.6

1.3

1.0		 3 ● VMX-100LP 40
● ● VMX-100LP-PR 56
● ● VMX-100LC-GR 61
● ● VMX-100LP-GR 63
● ● VMX-100LP-MR 64
2000 0.6

0.5

0.4		 2.5

2.0

1.5		 1.6

1.3

1.0		 3 ● VMX-200LP 45
● ● VMX-200LP-PR 65
● ● VMX-200LP-GR 70
● ● VMX-200LP-GP 72
● ● VMX-200LP-GR 74

VHX SERIES
Capacity
kg
 Air
pressure
(Mpa) 		Lift
speed
(m/min)		 Air
Consumption
(N-m³/min)		 Lift
(m)
 pendant
Control
 Geared
Trolley		 Air
Motor
Trolley		 Model Weight
(kg)
3000 0.6

0.5

0.4		 3.5

2.8

2.0		 3.1

2.5

2.0		 3 ● VHX-300LP 110
● ● VHX-300LP-GR
● ● VHX-300LP-MR 225
5000 0.6

0.5

0.4		 1.9

1.5

1.1		 3.1

2.5

2.0		 3 ● VHX-500LP 115
● ● VHX-500LP-GR
● ● VHX-500LP-MR

GLX SERICES
Capacity
kg
 Air
pressure
(Mpa) 		Lift
speed
(m/min)		 Air
Consumption
(N-m³/min)		 Lift
(m)
 Model Weight
(kg)
10 TON 0.5 1.6 6.2 3 GLX 10LP 260
15 TON 0.5 1.2 6.2 3 GLX 15LP 310
20 TON 0.5 0.8 6.2 3 GLX 20LP 330

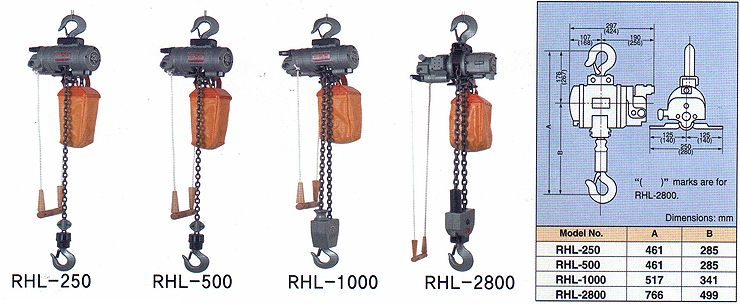

Pull Cable Type 풀 케이블 형

모 델 체인 능 력 양 정 체인길이 스피트 무게 에어
흡입구		 호스
싸이즈		 평균에어
소모량
kgf lb m ft m ft m/min ft/min kg lb Rc or NPT mm in m³/min ft³/min
RHL-250 Link 250 550 2.4 7.8 2.9 9.5 27 92 15.5 34.1 3/8 12.7 1/2 1.3 45.9
RHL-500 Link 500 1,100 2.4 7.8 2.9 9.5 12.6 46 15.5 34.1 3/8 12.7 1/2 1.3 45.9
RHL-1000 Link 1,000 2,200 2.4 7.8 5.5 18 5.7 23 21.5 47.3 3/8 12.7 1/2 1.3 45.9
RHL-2800 Link 2,800 6,160 3.0 9.8 7.5 24.6 2.2 7.2 60 132 G1 19.0 3/4 1.7 60

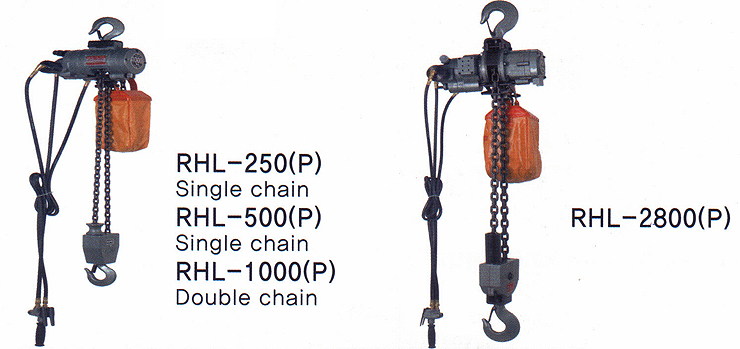

Pendant Control Type 펜던트 콘트롤 형

모 델 체인 능 력 양 정 체인길이 스피트 무게 에어
흡입구		 호스
싸이즈		 평균에어
소모량
kgf lb m ft m ft m/min ft/min kg lb Rc or NPT mm in m³/min ft³/min
RHL-250(P) Link 250 550 2.4 7.8 2.9 9.5 27 92 17.5 38.5 3/8 12.7 1/2 1.3 45.9
RHL-500(P) Link 500 1,100 2.4 7.8 2.9 9.5 12.6 46 17.5 38.5 3/8 12.7 1/2 1.3 45.9
RHL-1000(P) Link 1,000 2,200 2.4 7.8 5.5 18 5.7 23 23.5 51.7 3/8 12.7 1/2 1.3 45.9
RHL-2800(P) Link 2,800 6,160 3.0 9.8 7.5 24.6 2.2 7.2 63 139 G1 19.0 3/4 1.7 60

KMH SERIES
Capacity
(kg)
 Air Pressure
(mpa)
 Lift Speed
(m/min)
 Air Consumption
(N-㎡/min)
 Lift
(M)
 Pendant Plain
Trolley
 Geared
Trolley
 Air Motor
Trolley
 Model Weight(kg)
150 0.6
0.5
0.4		 16
12
7		 0.6
0.4
0.25		 3 ●





KMH 150
 13
250 0.6

0.5

0.4		 10

8

6		 0.6

0.4

1.7		 3 ●











KMH 250



 13
490 0.6

0.5

0.4		 10

8

6		 1.4

1.7

1.1		 3 ●



 ●



 ●



 ●



 KMH 490



 25
1000 0.6

0.5

0.4		 5

4

3		 1.7

1.4

1.1		 3 ●



 ●



 ●



 ●



 KMH 1000



 32

Mini Air Chain Hoist
Capacity
(kg)		 Air Pressure
(Mpa) 		lift Speed
(m/min) 		Air Consumption
(N-m3/min) 		lift
(M) 		Net Weight
(kg)
150 0.6 16 1.6 3 12
250 0.6 10 1.6 3 13
